Code: MG4208126

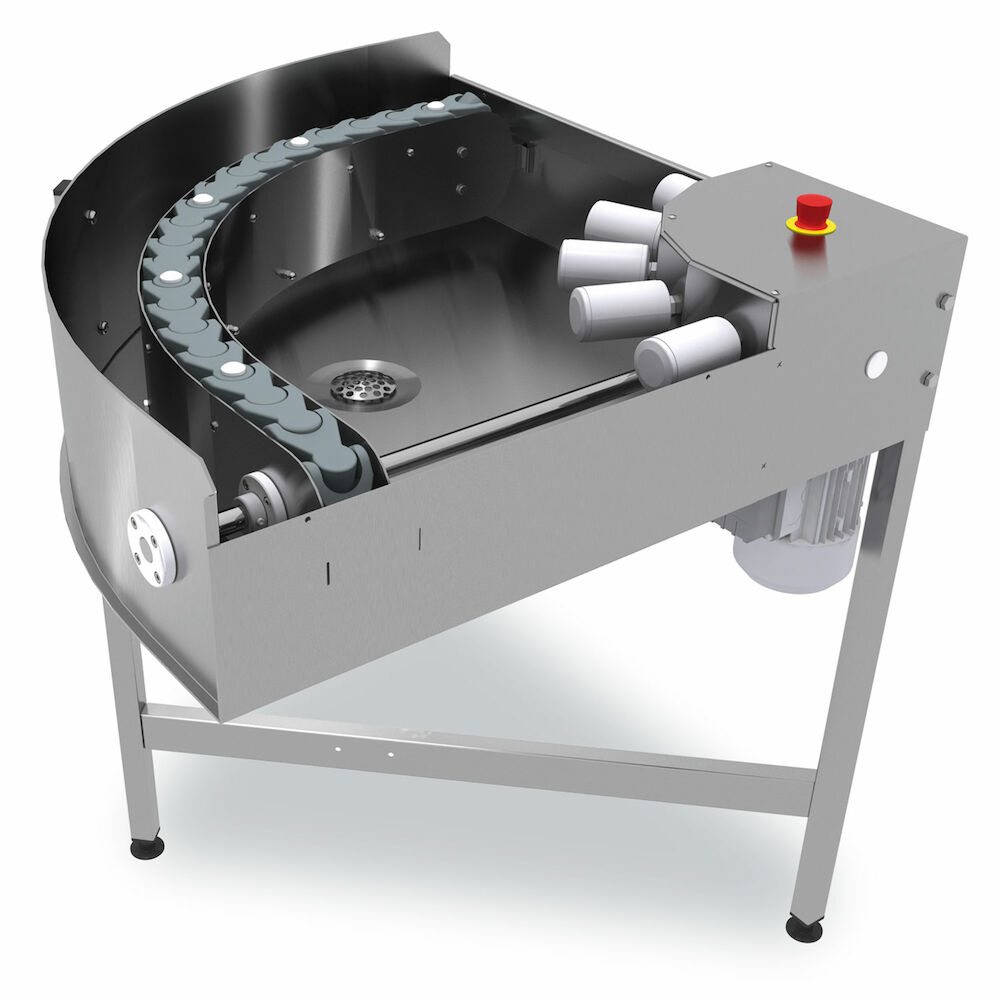

Motor-powered turn track 90° WD R-L

Motor-powered turn 90° track made entirely from stainless steel. Frame made from non-corrosive, 30x30 mm square tubing with adjustable feet. Suitable for all 50…

List price €5,135.00 Promotion price €2,986.00
On order
Motor-powered turn 90° track made entirely from stainless steel. Frame made from non-corrosive, 30x30 mm square tubing with adjustable feet. Suitable for all 50x50 cm washing baskets. The design means that the baskets are loaded from right to left using a plastic drive chain. Equipped with an emergency stop.

The turn track is connected to the machine’s outfeed side, either directly to the machine or to a straight section placed between the machine and the track. The turn track can also be placed on the infeed side.
General
Description Motor-powered turn track 90° WD R-L
Dimensions and Capacity
Item width mm 780
Item depth mm 780
Item height mm 890±25
Package volume 0.608 m3
Package dimensions (LxWxH) 80x80x95 cm
Net weight 45 kg
Package weight 45 kg
Technical information
Connection power kW 0.12
Connection voltage V 400
Number of phases 3NPE
Frequency Hz 50
Type of electrical connection Semifixed
