Code: MG4343913

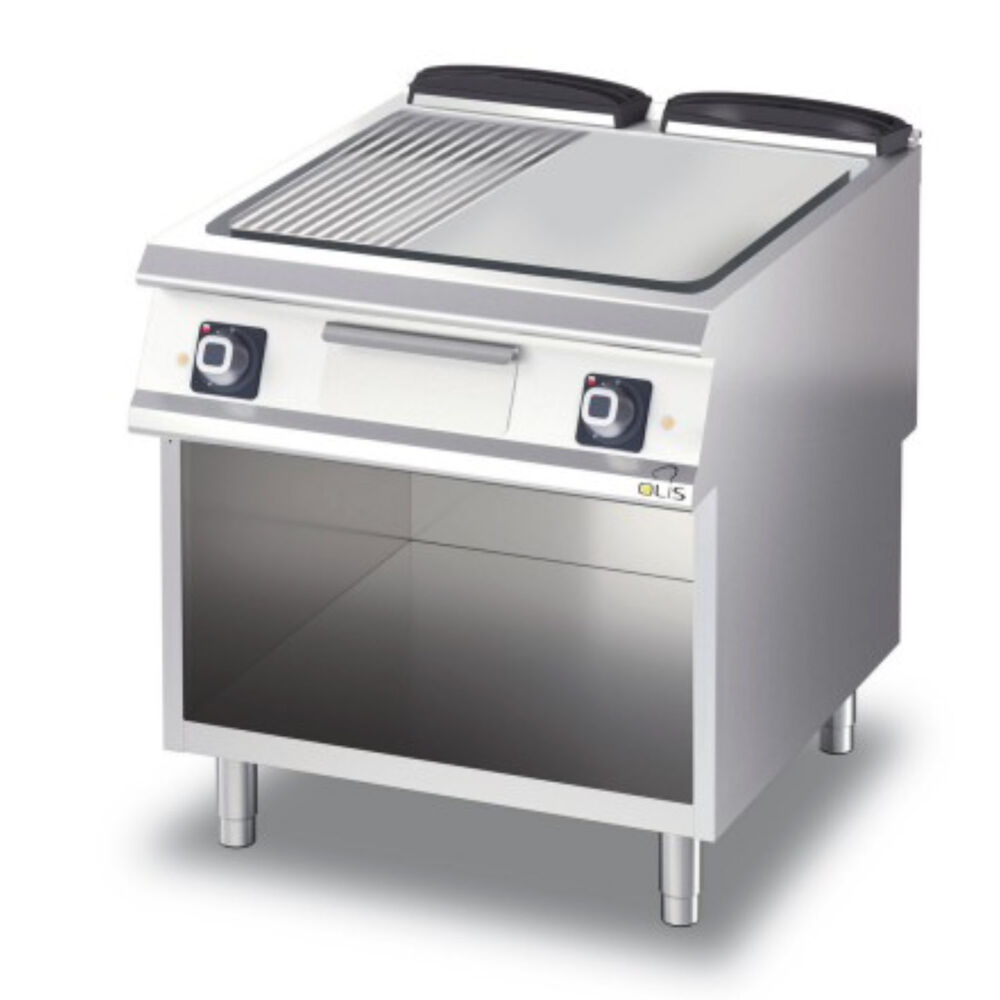

Griddle grooved Metos Diamante D74/10SFTEA1/3R with open cupboard

Electric griddle Metos D74/10SFTEA1/3R with stainless steel plate - 1/3 grooved and 2/3 smooth, is equipped with all the power, robustness and functionality you…

List price €4,941.00 Promotion price €3,142.00
On order
Electric griddle Metos D74/10SFTEA1/3R with stainless steel plate - 1/3 grooved and 2/3 smooth, is equipped with all the power, robustness and functionality you need to work efficiently.
- Open cupboard version, 1/3 grooved and 2/3 smooth stainless steel plate
- Stainless steel coating with Scotch Brite finish
- 15 mm thick cooking plate totally independent of the top
- Large canal canopy along the entire perimeter of the plate for the collection of cooking residues, inclined towards the front for the decelusion of the liquids in the large drawer
- Large fat collection drawer
- Uniform cooking temperature on the whole plate. Optimizing the heat in the coach area and increasing the comfort of operators in the kitchen.
- Plate not welded to the machine with optimization of the structural points subjected to thermal stress
-Too full cap in stainlessness, equipped as standard for the management of the flooding of the canaline
- Plate not welded to speed up maintenance interventions and any replacements in users
- reduced energy power, an increase in yield per cm2 which allows a reduction in consumption up to 15% compared to traditional versions
- Heating by means of armored resistances in incoloy
- Thermostatically controlled cooking temperature and adjustable from 110 to 280 ° C
- Safety thermostat
General
Description Griddle grooved Metos Diamante D74/10SFTEA1/3R with open cupboard
Dimensions and Capacity
Item width mm 800
Item depth mm 700
Item height mm 870
Package volume 0.66 m3
Package dimensions (LxWxH) 85x80x97 cm
Net weight 122 kg
Package weight 132 kg
Technical information
Connection power kW 10.8
Connection voltage V 400
Number of phases 3NPE
Frequency Hz 50/60
Protection rating (IP) X4
Type of electrical connection Semifixed
Features
Raw material stainless steel
Type electric
Operation type electromechanical
Top material type stainless steel
Frying top type ribbed
Griddle type frytop
Model Diamante
Installation
Installation fixed
Installation floor model
Installation free standing
